Solid dose inspection
APT Inspect and Fill
Bring 360° inspection, dust removal, electronic counting and bottle filling into one coordinated process. APT Inspect and Fill is a modular platform for tablets, capsules and softgels, with configurations matched to your required output.
Application
Products pass through feeding, inspection and reject verification before accepted units are counted and directed into bottles. Integrated dust extraction covers the hopper, feeding path and inspection/counting areas to help maintain a cleaner optical environment during dusty-product runs.
Key features
- 15–20 inspection images per product with color, crack and chip detection.

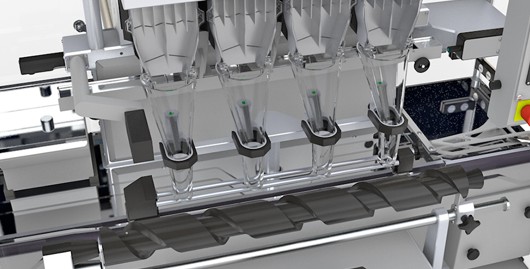

- Integrated de-dusting, reject verification, electronic counter and filling funnel.
- Touchscreen control, recipes and accessible product-contact parts for cleaning.
Technical information
| Feature | Specification |
|---|---|
| Single configuration | 12 channels; theoretical maximum 3,672 products/minute and up to 36 bottles/minute at 100 count. |
| Twin configuration | 24 channels; theoretical maximum 7,344 products/minute and up to 72 bottles/minute at 100 count. |
| Triple configuration | 36 channels; theoretical maximum 11,016 products/minute and up to 108 bottles/minute at 100 count. |
| Utilities | 110 V, 60 Hz, single phase, 16 A; filtered dry compressed air at 72–100 PSI. |
| Construction | Stainless steel with non-contact anodized aluminum where applicable; mobile frame with locking castors. |
Output figures describe the June 26 configuration and are theoretical maxima. Sustained production output depends on product behavior, bottle format, reject rate and line conditions; confirm by application testing.
System configuration, inspection capability and achievable output depend on the product, handling conditions and agreed application requirements. APT evaluates each application to define the appropriate inspection, integration and qualification scope.
